Unequal Wilkinson Antenna Power Divider RF Splitter SMA 50OHM 500-8000MHz

Brand Name : Vinncom

Model Number : VN-PD-500-8000-OS2

Certification : 500-8000

Place of Origin : China

MOQ : 5pcs

Price : negotiation

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 50pcs per day

Delivery Time : 2-4weeks

Packaging Details : foam+box

Operating Frequency ( MHz ) : 500-8000

Impedance( Ohm ) : 50

Input VSWR : ≤1.25

Output VSWR : ≤1.20

Insertion loss : ≤1.5

Isolation(dB) : ≥20

Amplitude Balance(dB) : ±0.2

Phase Balance : ±3°

Contact Now

500-8000MHz Wilkinson SMA Female 2 Way Power Divider/Combiner

  • Wide band frequency
  • Less Insertion Loss
  • Good VSWR at all ports

Part Number VN-PD-500-8000-OX2
Operating Frequency ( MHz ) 500-8000

Impedance( Ohm )

50
Input VSWR ≤1.25
Output VSWR ≤1.20
Insertion loss ≤1.5(SMA) ≤1.8(N)
Average Power (Watt max.) 30W max. / 2W max. as combiner

Isolation(dB)

≥20

Amplitude Balance(dB)

±0.2
Phase Balance ±3°

Operating Temperature( ℃ )

-35 ~ + 75c

Interface

 SMA Female N Female

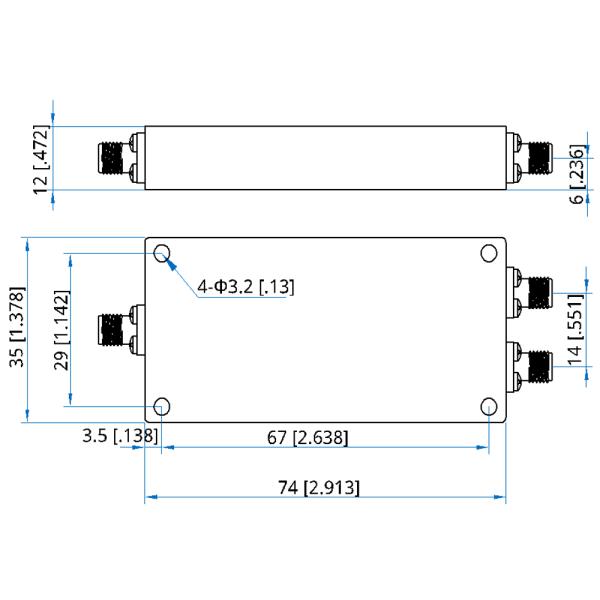

Dimension Tolerance(mm)

 ±0.5

Mounting

 4-Φ3.2mm through-hole

Unequal Wilkinson Antenna Power Divider RF Splitter SMA 50OHM 500-8000MHzUnequal Wilkinson Antenna Power Divider RF Splitter SMA 50OHM 500-8000MHz
